In a previous article we demonstrated how a single switch functions. One of the most frequent requests I receive is asking how the process would be different if there were multiple switches. This article will illustrate the process using two switches.
In the Packet Traveling series, we discussed the four specific functions of a switch: Learning, Flooding, Forwarding, and Filtering; we then illustrated each function in an animation that showed two hosts communicating through a single switch.
With multiple switches, each switch will still independently perform the exact same four functions. The process does not change, it is simply replicated separately by other switches.

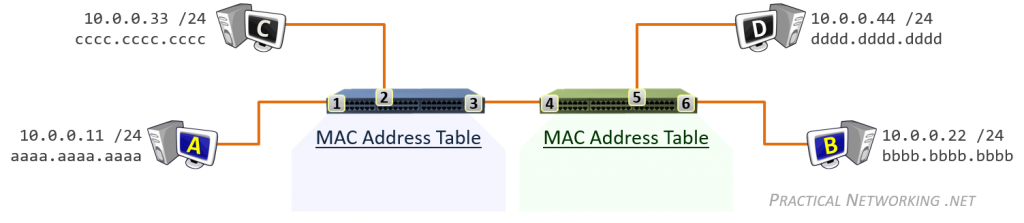

We will illustrate how data moves between multiple switches using the following topology:
Our topology has two switches, and each has their own, independent MAC address table — the information in the MAC address tables are never shared.
Host A and C are connected to ports 1 and 2 of the blue switch on the left. Host B and D are connected to ports 5 and 6 of the green switch on the right. Port 3 on the blue switch is connected to port 4 on the green switch.
We will illustrate each step that occurs for each of the following:
- Initial frame from Host A to Host B
- Response from Host B to Host A
- Continued communication between Host A and Host B

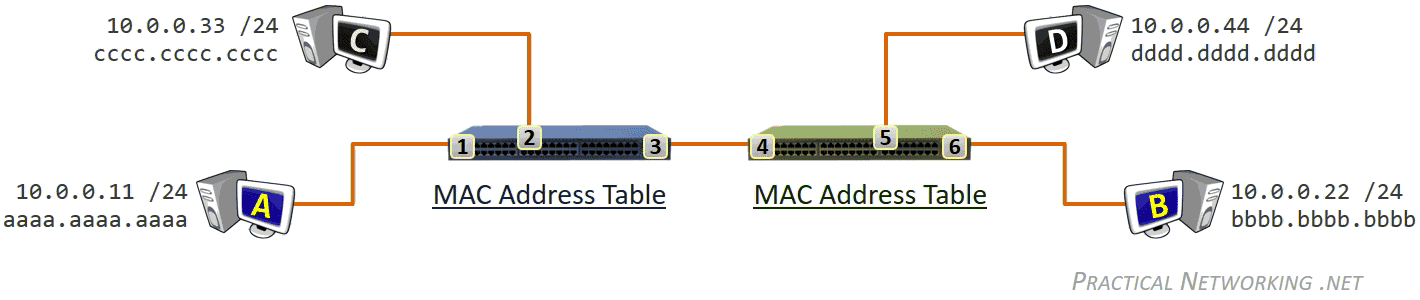

Host A to Host B
It starts with Host A having a frame to deliver to Host B. The contents of the frame are irrelevant, it could be an ICMP (ping) packet, it could be an ARP packet, or it could be other data.
The Layer3 header would include a Source IP address of 10.0.0.11 (Host A) and a Destination IP address of 10.0.0.22 (Host B).
The Layer2 header would include a Source MAC address of aaaa.aaaa.aaaa and a Destination MAC address of bbbb.bbbb.bbbb. The switches will use the information in the Layer2 header to move the frame between the two hosts.
To begin, the MAC address tables for both switches will be empty. They will populate as the switches learn of each device connected to each port by reading the Source MAC address field of each received frame.
When the frame arrives on the blue switch, the first thing that happens is the blue switch learns the MAC address aaaa.aaaa.aaaa exists on port 1. Then, since the blue switch does not yet have an entry in tis MAC address table for bbbb.bbbb.bbbb, the frame is duplicated and flooded out every port.
The frame arrives on Host C, who will inspect the frame and realize it is not the intended recipient. Host C will silently discard the frame.
The frame will also arrive on the green switch. Just like the other switch, the first thing the green switch will do is learn that it received a frame on port 4 with a source MAC address of aaaa.aaaa.aaaa. And again, just like the other switch, the green switch does not know where the MAC address bbbb.bbbb.bbbb exists, so the frame will again be duplicated and flooded out each switch port.
Notice in both cases, the frame was flooded out each port, except the port it was received on. This is an example of a switch’s filtering behavior. This behavior prevents a switch from sending a frame out the same port it was received.
Host D will receive the frame, and silently discard it since the frame was not addressed to Host D.
Host B will receive the frame and accept it for processing, since Host B was the intended destination..
Host B to Host A
On the way back things will go a little simpler. The switches have already learned about some of the connected devices, and that should alleviate some of the additional flooding that was required for the initial communication in the previous section.
Specifically, both switches know the location of the MAC address aaaa.aaaa.aaaa – port 1 on the blue switch and port 4 on the green switch. Each switch learned the location independent of the other; there was no communication between the switches or sharing of MAC address tables.
In the response frame sent by Host B to Host A, the Layer2 header will have a Source MAC address of bbbb.bbbb.bbbb and a Destination MAC address of aaaa.aaaa.aaaa.
The response frame will first arrive on the green switch on port 6. Therefore, the green switch will learn that the MAC address bbbb.bbbb.bbbb exists out port 6. The green switch then consults its MAC address table to determine that the frame destined to aaaa.aaaa.aaaa should be forwarded out port 4.
The response frame then arrives on the blue switch on port 3. Therefore, the blue switch will learn the MAC address bbbb.bbbb.bbbb exists out port 3. The blue switch then consults its MAC address table to determine that the frame destined to aaaa.aaa.aaaa should be forwarded out port 1.
Which will finally get the response frame back to Host A. Notice on the way back no flooding was required. Both switches knew the location of the destination MAC address of the frame.
Communication with populated MAC Address Tables
Finally, with the both switches’ MAC address tables fully populated, communication between Host A and Host B resembles the following:
Each time a frame is received, the switch first attempts to learn the MAC address mapping on the receiving switch port. If the mapping is already known, it is simply refreshed in the MAC address table.
Notice, Host C and D receive none of the frames sent between Host A and B. The switch is able to create an isolated path for the data between these two hosts (so long as the MAC address tables remain populated).
This is one of the benefits of upgrading to a Switch from a simple Hub. With a Hub, every frame is flooded out every port, every time. Whereas with a switch (or a “smart hub”, as they are sometimes referred to) only the first few frames will be flooded, but all remaining communication between two hosts is confined to only those two hosts.
All Hosts

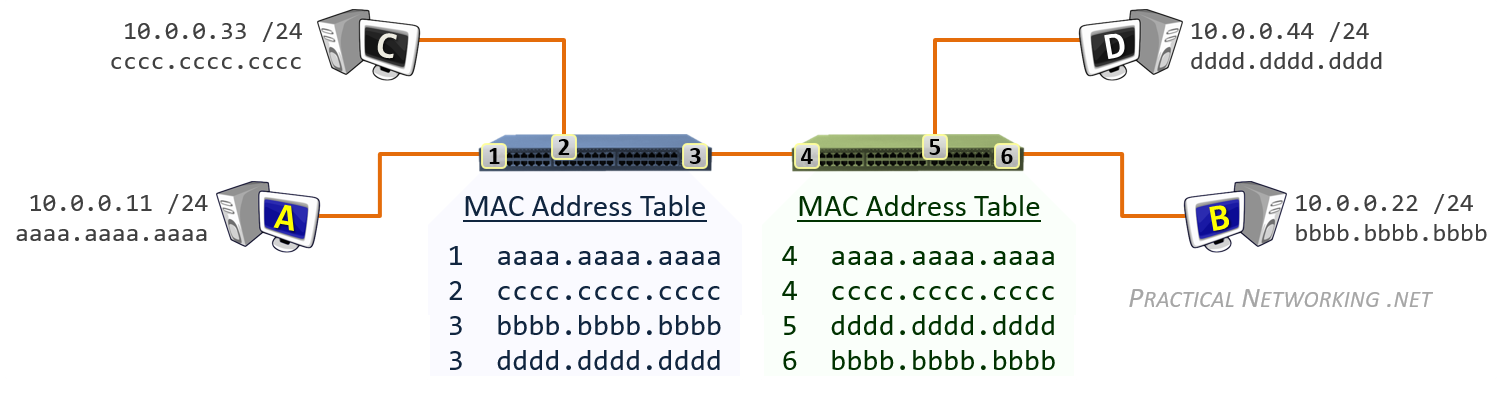

At some point in time, all hosts will have sent some frames, providing both switches the opportunity to learn the location of each MAC address in the topology above. At that point, the switch MAC address tables will resemble the image below:
The key item to note is that each switch port can learn of multiple MAC addresses. Notice, from the blue switch’s perspective, the location of Host B and D is out port 3. Moreover, from the green switch’s perspective, the location of host A and Host C is out port 4.
Full Process
Below is the entire process of Host A and Host B communicating, from beginning to end, and including the ability to pause/forward/rewind the animation. If you’ve read through this article and understand each step described above, you can use this animation to study. Or even better, to explain the process to someone else.
